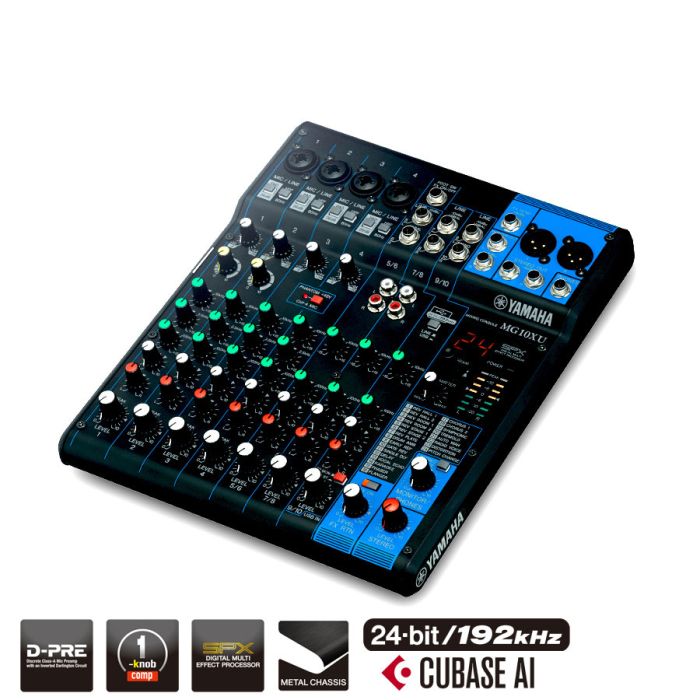

YAMAHA MG10XU D-PRE MIXER WITH EFFECTS AND USB
Special Price
A$389.00
Regular Price
A$439.00
Availability: Available
Manufacturer
YAMAHA
SKU
MG10XU
YAMAHA MG10XU D-PRE MIXER WITH EFFECTS AND USB 10 CHANNEL MIXER
For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
Key features:
- 10-channel mixing console
- Max. 4 mic / 10 line inputs (4 mono + 3 stereo)
- 1 stereo bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit/Lightning to USB camera adapter
- Includes Cubase AI DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
| Specification | Specifications:
GENERAL SPECIFICATIONS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAMAHA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications:
| Mixing capability | On-board processors | SPX algorithm: 24 programs |
|---|---|---|
| I/O | Phantom power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
| Input Channels | Mono[MIC/LINE] | 4 |
| Stereo[LINE] | 3 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| PHONES | 1 | |
| AUX SEND | 1 | |
| Bus | Stereo: 1, AUX[FX]: 1 | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) | |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | |
GENERAL SPECIFICATIONS
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min | |
|---|---|---|
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | |
| Crosstalk | -83 dB | |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | |
| Power consumption | 22.9 W | |
| Dimensions | W | 244 mm (9.6") |
| H | 71 mm (2.8") | |
| D | 294 mm (11.6") | |
| Net weight | 2.1 kg (4.63 lbs.) | |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 | |
| Others | Operating Temperature: 0 to +40˚C | |
