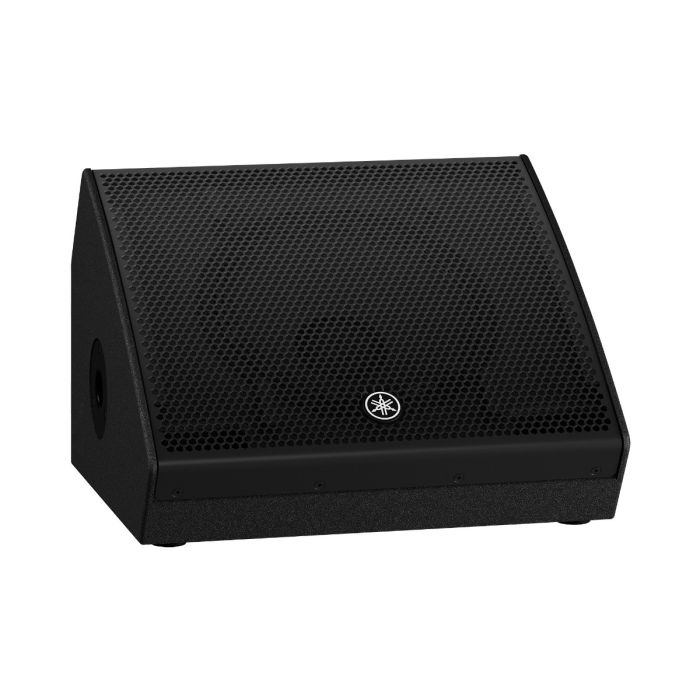

Yamaha DHR12M 12" 2-Way Bi-Amp Powered Speaker / Monitor 465W RMS - plywood cabinet
Special Price
A$979.00
Regular Price
A$1,199.00
ACCEPTING BACKORDERS
SKU
DHR12M
Yamaha DHR range of powered speakers
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?
| Custom Stock Status | ACCEPTING BACKORDERS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||
|---|---|---|---|
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 44 Hz - 20 kHz | 55 Hz - 20 kHz | |
| Coverage area | H90ﾟ x V60ﾟ | H90ﾟ x V90ﾟ | |
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Maximum Output Level (Measured peak, IEC noise@1m) | 131 dB SPL | 129 dB SPL | |
| Components | LF | Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite | Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite |
| HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite | Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite | |
| Amplifier class | Class-D | Class-D | |
| Power rating | Dynamic | 1,000 W (LF: 800 W, HF: 200 W) *1 | 1,000 W (LF: 800 W, HF: 200 W) *1 |
| Continuous | 465 W (LF: 400 W, HF: 65 W) | 465 W (LF: 400 W, HF: 65 W) | |
| Cooling | Fan cooling, 4 speeds | Fan cooling, 4 speeds | |
| Power consumption | 74 W (1/8power), 18 W (Idle) | 74 W (1/8power), 18 W (Idle) | |
| Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz | 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz | |
| A/D D/A Converters | 24 bit 48 kHz Sampling | 24 bit 48 kHz Sampling | |
| Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Cabinet material | Plywood | Plywood | |
| Finish | Durable Polyurea Painting, Black | Durable Polyurea Painting, Black | |
| Handle | Side x2 | Side x1 | |
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) | Φ35 mm x1 (Bottom) | |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) | - | |
| Floor Monitor Angle | - | 57° | |
| Dimensions | W | 432 mm (17.0") | 500 mm (19.7") |
| H | 692 mm (27.2") (with rubber feet) | 343 mm (13.5") (with rubber feet) | |
| D | 405 mm (15.9") | 454 mm (17.9") | |
| Net weight | 24.0 kg (52.9 lbs) | 16.5 kg (36.4 lbs) | |
| Options | - | - | |
