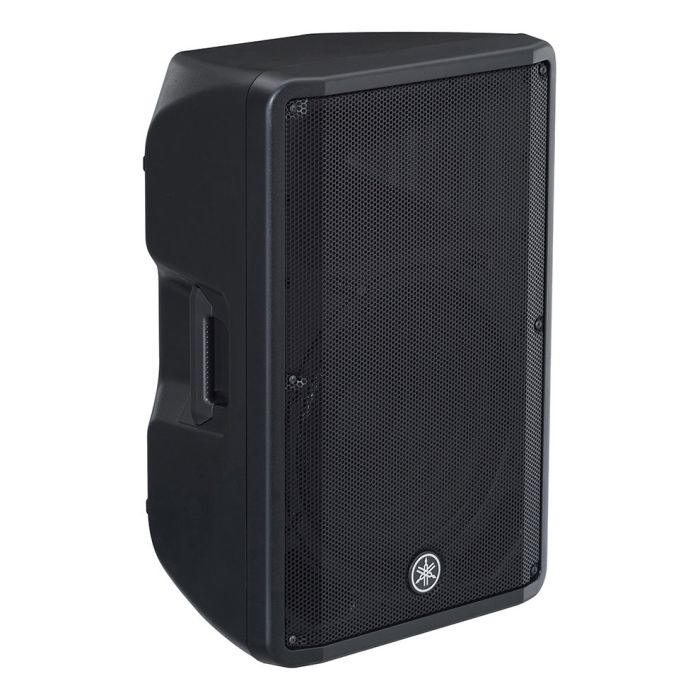

YAMAHA CBR15 15” 2-WAY PASSIVE LOUDSPEAKER
Availability: Available
YAMAHA
250W RMS
he CBR Series is Yamaha's newest lineup of passive loudspeakers that are capable of delivering high-quality sound with impressive power while offering exceptional portability. CBR Series loudspeakers employ custom-designed transducers and are tuned by precise adjustment of an internal passive network.
The new models also feature a highly responsive LF unit and a protection circuit that limits excessive input to the HF driver, which ensure reliable operation even when pushed to their limit. Featuring the same versatile enclosure design as the DBR Series and equipped with fast and easy connectivity, CBR loudspeakers can deliver the high-output, high-resolution sound ideal for front-of-house, floor monitoring, or rigged applications.
Visit PA Speakers page for more products.
| Specification |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAMAHA |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Speaker type | 2-way Speaker, Bass-reflex Type | |
|---|---|---|
| Frequency range (-10dB) | 46 Hz - 20 kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 15" Cone, 2.5" Voice Coil (Ferrite Magnet) |
| HF | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.0 kHz | |
| Power rating | NOISE | 250W |
| PGM | 500W | |
| PEAK | 1000W | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL |
| Peak (Calculated) | 126 dB SPL | |
| I/O connectors | 1/4" Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | Φ35 mm Bottom x 1 | |
| Dimensions | W | 455mm (17.9") |
| H | 700mm (27.6") | |
| D | 378mm (14.9") | |
| Net weight | 17.7 kg (39.0 lbs) | |
| Accessories | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | |
