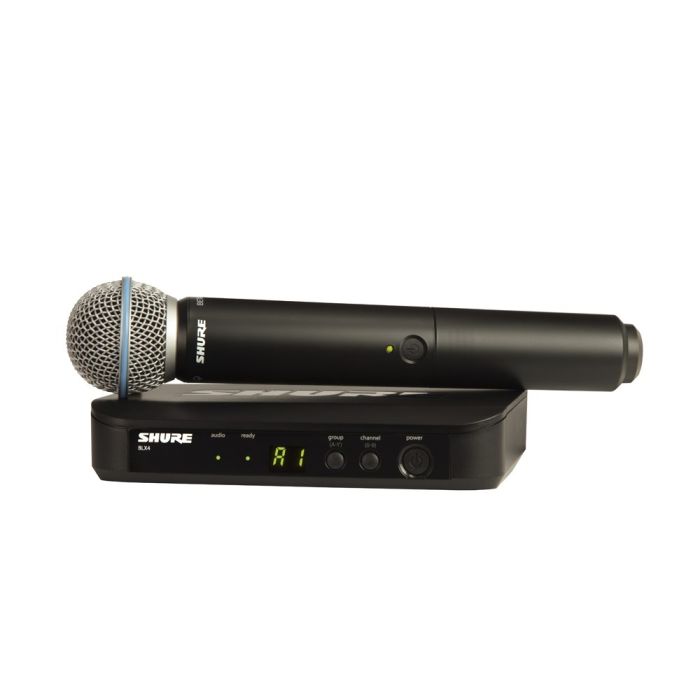

SHURE BLX24/BETA58 HANDHELD WIRELESS SYSTEM

Special Price A$719.00 Regular Price A$839.00

Availability: Available

Manufacturer

SHURE

SKU

BLX24B58

Beta58 capsule/Shure BLX24/Beta58 Handheld Wireless microphone System

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

System includes:

BLX2 Handheld transmitter with BETA58 microphone cartridge.

BLX4 Single channel wireless receiver with microprocessor-controlled internal antenna diversity.

FEATURES

Frequency Range: 614MHz-638MHz
Up to 14 hours battery life
Integrated microphone capsule design, featuring PG58, SM58®, or Beta 58A® options
Lightweight, rugged construction
Color ID caps (available separately)
The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.
XLR and ¼ inch output connectors
Two-color audio status indicator LED - Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)

More Information

More Information
Specification	BLX4 receiver One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference) Up to 12 compatible systems per frequency band (region-dependent) XLR and ¼” output connectors Microprocessor-controlled internal antenna diversity Two-color audio status indicator LED Green: Normal audio levels Red: Excessive audio levels (overload/clipping) Output Impedance XLR connector: 200 Ω 6.35 mm (1/4") connector: 50 Ω Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load) RF Sensitivity -105 dBm for 12 dB SINAD, typical Image Rejection >50 dB, typical Dimensions 40 mm X 188 mm X 103 mm (H x W x D) Weight 241 g (8.5 oz.) Housing Molded ABS Power Requirements 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
Manufacturer	SHURE
Package	1 Pack

Specification

BLX4 receiver

One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
XLR and ¼” output connectors
Microprocessor-controlled internal antenna diversity
Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)

Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
40 mm X 188 mm X 103 mm (H x W x D)
Weight
241 g (8.5 oz.)
Housing
Molded ABS
Power Requirements
12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
