NEXO P12 Compact Coaxial High Output 12" Speaker
Availability: Available
P12

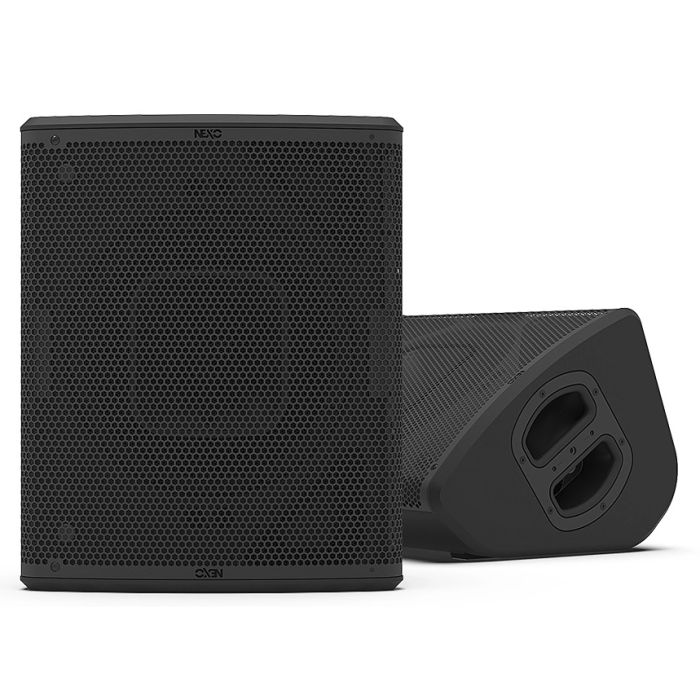

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 534mm x 432mm x 314mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.
KEY FEATURES
- Compact, low-profile, curvilinear enclosure
- 12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
- Variable HF directivity
- Switchable Active/Passive modes
- 140dB peak SPL (Active Mode)
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Stand fitting on both sides
- 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
- Touring, installation and TIS versions
FEATURES
| Components | LF: 1x12" - 8Ω; HF : 1x3" - 8Ω - Neodymium driver |
| Number of ways (Touring/TIS versions) | 2 ways passive (2+/2- P12) or 2 ways active (1+/1- LF, 2+/2- HF) switchable |
| Number of ways (Install version) | 2 ways passives |
| Connectors (Touring/TIS versions) | 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) |
| Connectors (Install version) | 1 x Cable gland with 2 cores cable |
| Rigging points | 1 x universal accessory fit on each side + 1 x on the bottom |
| Material | Custom made bent plywood of baltic birch and poplar |
| Finish | Black or White structural paint |
| Front Finish (Touring version) | Steel front grille + back mesh |
| Front Finish (Install/TIS versions) | Acoustic fabric fitted front gril |
| Weight : Net | 20 kg (44 lbs) |
| Height x Width x Depth | 534mm x 432mm x 314 mm (21.0” x 17.0” x 12.3”) |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| System Operation | |
| Recommended Powering Solution | NXAMP4X2MK2: Up to 2 x P12 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x1.3 : 1 x P12 per channel |
| NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P12 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: up to 4 x P12 per channel |
| Specification | SPECIFICATIONS
|
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package | 1 Pack |
SPECIFICATIONS
| Frequency Response (+6 dB) | 60 Hz - 20 kHz |
| Sensitivity 1W@1m | 107 dB |
| Peak SPL Level (1m) | 138dB Peak (Passive mode) / 140dB Peak (Active mode) |
| Recommended Amplifiers | 800 to 1250 Watts / 8Ω |
| HF Dispersion (according to horns) | 60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40° |
| Crossover Frequency | 60 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | Active mode (8Ω LF, 8Ω HF), Passive mode: 8Ω |
| Recommended Power | Active: (800 to 1250 W LF + 400 to 630 W HF) / Passive: 800 to 1250 W |
