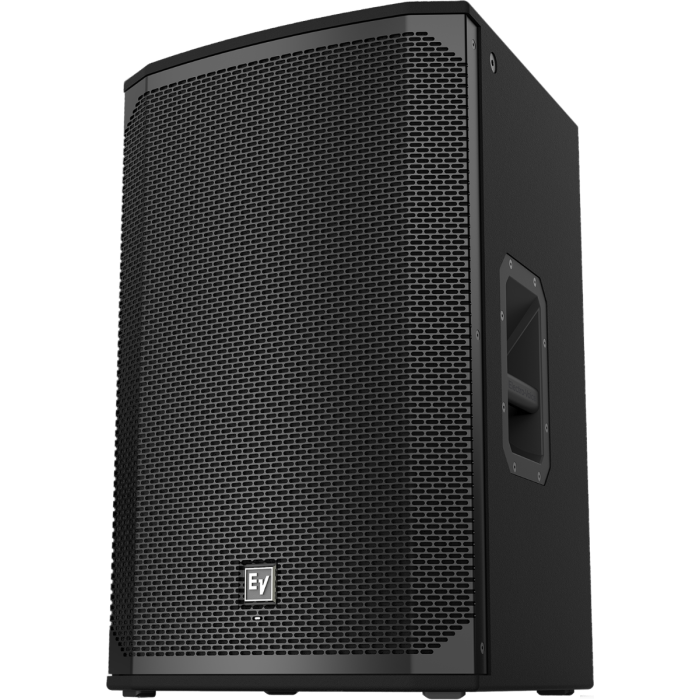

EV EKX-15 15" TWO WAY PASSIVE LOUDSPEAKER
Special Price
A$1,249.00
Regular Price
A$1,661.00
Availability: Available
Manufacturer
EV
SKU
EKX15
350W RMS
- EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Visit PA Speakers page for more products.
| Specification | Specifications
|
||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | EV |
||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
Specifications
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 dB Full Space Measurement |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Crossover Frequency | 1.6 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 50 Hz - 20 k Hz Full Space Measurement |
| Frequency Response (-3 dB) | 75 Hz - 18 k Hz Full Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Maximum SPL | 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating |
| Minimum Impedance | 7.2 Ω |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous / Peak) | 400 W/1600 W |
| Recommended High-Pass Frequency | 50 Hz |
| Shipping Weight | 28.2 kg (62.17 lbs) |
| Suspension | (8) M10 threaded mounting points |
| Height | 16RU 685 mm (26.97") |
| Width | 432 mm (17.01") |
| Depth | 429 mm (16.89") |
| Weight Net | 23.2 kg (51.15 lbs) |
