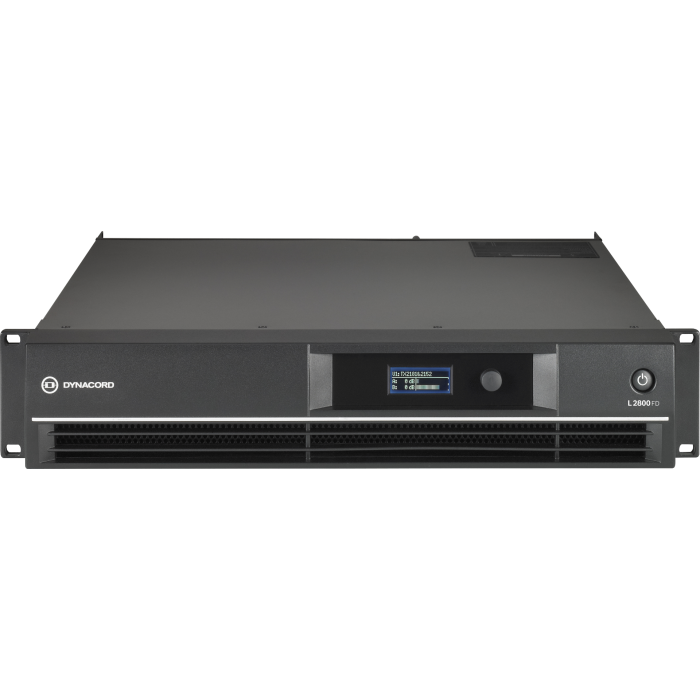

Dynacord L2800FD DSP 2 x 1400 W Power Amplifier with DSP
Availability: Available
Professional DSP amplifier for live and mobile application
Fully integrated professional speaker processing with FIR Drive technology
Market leading acoustic performance and rock solid reliability
Intuitive system control software, makes setup and control easy
DYNACORD L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
| Load Impedance | 2 Ω | 2.7 Ω | 4 Ω | 8 Ω |
| Maximum Output Power, Single Channel | 2300 W | 2000 W | 1400 W | 700 W |
| Maximum Output Power, Dual Channel | 2200 W | 1800 W | 1300 W | 650 W |
| Maximum Output Power, Bridged | - | - | 4400 W | 2600 W |
| Specification | SPECIFICATIONS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package | 1 Pack | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS
| Load Impedance | 2 Ω | 2.7 Ω | 4 Ω | 8 Ω |
| Maximum Output Power, Single Channel | 2300 W | 2000 W | 1400 W | 700 W |
| Maximum Output Power, Dual Channel | 2200 W | 1800 W | 1300 W | 650 W |
| Maximum Output Power, Bridged | - | - | 4400 W |
2600 W |
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 78.8 V | |||
| Voltage Gain Ref.1 kHz | 32.0 dB | |||
| THD at 900 W/4 Ω MBW = 80 kHz, 1kHz | < 0.05% | |||
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
| DIM30, 3.15 kHz, 15 kHz | < 0.05% | |||
| Maximum Input Level | +21 dBu | |||
| Crosstalk ref. 1 kHz, at 100W/4 Ω | < -80 dB | |||
| Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (±1 dB) | |||
| Input Impedance, Active Balanced | 20 k Ω | |||
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω | >107 dB | |||
| Output Noise, A-weighted | < -68 dBu | |||
| Output Stage Topology | Class H | |||
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured) | |||
| Power Consumption ⅛ Maximum Output Power @ 4 Ω | 700 W | |||
| Mains Fuse | 240 V/230 V: T15AH; 120 V/100 V: T25AH | |||
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | |||
| Cooling | Front-to-rear, 3-stage-fans | |||
| Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
| Safety Class | I | |||
| Color | Black | |||
| Dimensions (W x H x D), mm | 483 x 88 x 462.4 | |||
| Weight | 16.2 kg (35.7 lb) | |||
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | |||
| Remote Control | SONICUE sound system software ** | |||
| Accessories | RMK15 (rear rack mount kit) | |||
