Chiayo Live100B wireless beltpack system with instrument cable
Special Price
A$239.00
Regular Price
A$549.00
SKU
Live100B-Guitar
Product Live-100 Series: Wireless System Packages
The LIVE-100 system packages feature a metal chassis receiver with 100 UHF channels, including a spectrum scan feature and IR frequency upload/download. Each package includes an XLR patch lead and rack mounting kit.
Available frequency ranges: 520MHZ, 566MHZ and 650MHZ. Please specify preference on check out

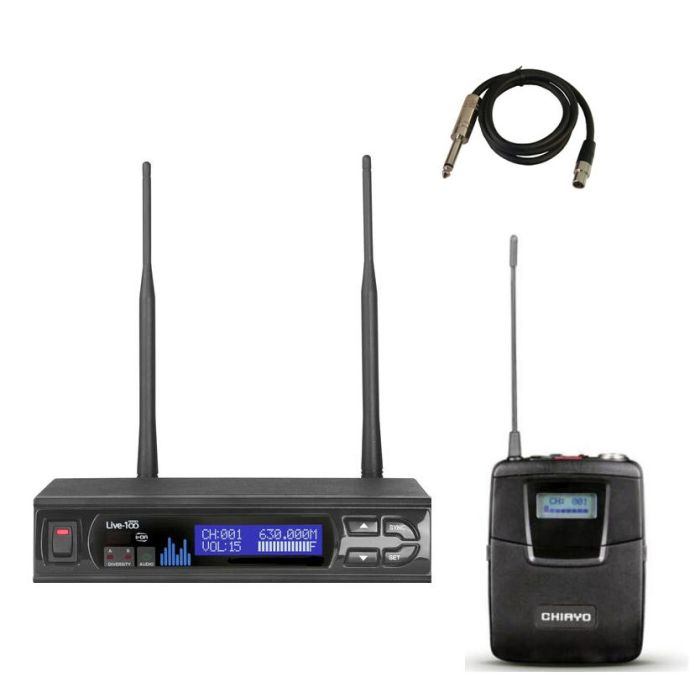

Guitar System:
Live-100 Wireless Receiver SM1100 IrDA,
Beltpack Transmitter SM6100 IrDA
Guitar cable
Key Features:
- 100 factory preset user-selectable UHF frequencies
- Advanced microprocessor control with excellent RF design for interference-free multi-channel operation
- Patented IrDA technology for 2-way sync between transmitter and receiver
- SCAN function automatically locates the next clean frequency
- More than 10-12 non-interfering channels can be operated simultaneously within a selected 25MHz bandwidth
- Diversity design for high sensitivity, high selectivity, and high image/spurious rejections
- LCD display on the receiver shows the selected frequency
- Antennas can be either rear or front-mounted
- Anti-interference Pilotone control and RF noise squelch circuitries
- RF & AF LED indicators
- Balanced (XLR)*1 / unbalanced (O6.3mm)*1 audio outputs
- Half-rack metal chassis, mountable with optional mount kit (MP-90S for 1 unit, MP-92S for 2 units)
- Matching transmitters: SQ-6100 IrDA/SQ-5100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA, SM-6100 IrDA/SM-1100 IrDA
| Specification | Specifications (Wireless Receiver):
Note: The above specifications are subject to change without prior notice. |
|---|---|
| Package | 1 Pack |
Specifications (Wireless Receiver):
- Frequency Range: UHF
- Switching Bandwidth: 25MHz
- Switchable Frequencies: 100
- Channels: 1
- Display Screen: LCD
- Oscillation Type: PLL Synthesized
- Frequency Stability: ±0.005%
- Receiving Method: Diversity
- Sensitivity: -95dBm
- 2-Way Synchronization: Yes
- Image Rejection: > 85dB
- S/N Ratio: > 110dB
- Peak Deviation: ±40KHz
- T.H.D: < 0.5%
- Antenna Divider: -
- Antenna Socket: TNC type
- Audio Outputs: Unbalanced: +4dBm(1.25V)/5KΩ / Balanced: -18dBm(50mV)/600Ω
- Squelch: RF/Noise/Pilotone squelch
- Power Supply: 100-240V AC, 12V DC/2.0A
- Chassis: Half-rack (metal)
- Dimensions (WDH, mm): 20015044
- Weight (kg): 0.63
Note: The above specifications are subject to change without prior notice.
